CX-A5000

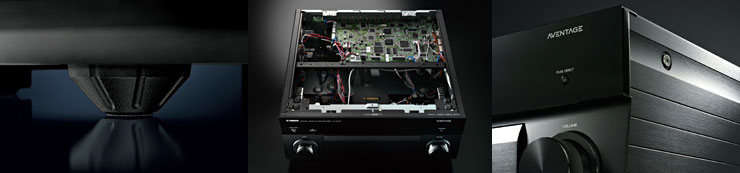

O CX-A5000 utiliza a engenharia e tecnologia mais sofisticados, bem como artesanato tradicional, para reprodução de som puro. Fazendo pleno uso de CINEMA DSP HD3, o auge da reprodução do campo de som tridimensional, percebe o que a imagem e som detalhado precisam. Combinado com o amplificador de potência de 11,2-canal MX-A5000, alcança de forma esmagadora um silêncio e som cheios de sentimento dinâmico. Ele também oferece a tecnologia avançada de processamento de vídeo, capacidade de rede versátil com uma vasta gama de controle de acesso e app de conteúdo e configuração de sistema flexível que beneficia de comutação de HDMI na zona avançada.

A linha AVENTAGE de receptores AV de alto desempenho é baseada no conceito de áudio design de proporcionar um som encorpado, maciço, de efeitos sonoros de filme e a reprodução exata de fontes de música. Harmonizando habilmente tradicionais e tecnologias avançadas, cada factor que afeta a qualidade de som, de materiais e componentes de construção, layout, vibração de amortecimento (único pé) e "afinar" o som, é tratado para alcançar a melhor qualidade de áudio possível. Como resultado, cada modelo AVENTAGE tem a capacidade de reproduzir os detalhes mais subtis de som de alta definição, para que os ouvintes podem desfrutar de uma experiência verdadeiramente High-Class studio som em casa.

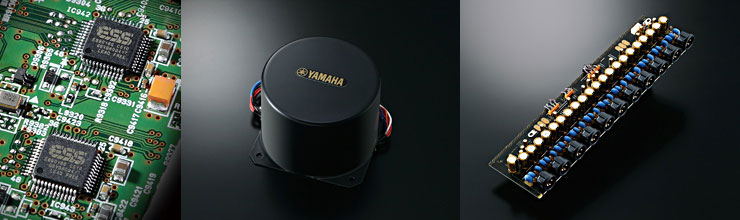

O CX-A5000, todos os canais usam ultra alta performance ESS ES9016 DACs, que fornecem SN de 192kHz/32-bit a relação compatível de elevada e gama dinâmica, garantindo que pode reproduzir fielmente sinais de áudio de Blu-ray e outros players, e alta qualidade de sinais de entrada de fontes sonoras de alta resolução através de redes. Correspondência para o desenho do circuito DAC, que alcança o potencial da terra estável (DAC na Terra pura), asseguram alta precisão conversão D/A. O amp OP é um tipo de alto grau adotado apenas por modelos de porta-estandarte, a pureza máxima de sinal. Percebe o som ainda mais detalhado adotando um projeto de placa de circuito das três - que separam completamente as camadas digitas, analógicas analógicas e vídeo audio placas de circuito, que têm diferentes níveis de ruído e bandas de frequênciae por um design que fornece a rota mais curta do circuito possível. Além disso, separando as fontes de alimentação para as placas de circuitos analógicas, elimina interferência de ruído de alta frequência de circuitos digitais. Fonte de alimentação blindado restringe a radiação de ruído e o grande poder transformador minimiza a vibração.

Um altíssimo desempenho ESS tecnologia 192 kHz/32 bit que DAC ES9016 produz um palco de som insuperável com até124 dB dinâmica variam, super baixa distorção e nível de ruído. Esta qualidade de topo DACs são usadosmesmo para frente e colunas traseiras de presença. Reprodução de som do receptor este AV é para os ouvintes mais exigentes.

Ruído elétrico pode ser gerado devido à conexão com outros componentes AV e até mesmo para a ligação entre o pré-amplificador e o amplificador de potência, bem como de outras fontes de ruído externo. Para garantir que o CX-A5000 e MX-A5000 não são afetados por essa distorção, eles usam ligações equilibradas que são altamente resistentes a ruído — o mesmo tipo que geralmente utilizado em equipamentos de áudio profissional. Mesmo a ligação desiquilibrada RCA usa o chão como método de transmissão que atinge simples transmissão equilibrada. E em casos tais como que cada canal com o XLR for utilizado seletivamente, o impacto do ruído que flui entre o pré-amplificador e os chassis do amplificador de potência é removido, minimizando a deterioração da qualidade do som devido à ligação. O CX-A5000 também permite a ligação de entrada áudio equilibrada para componentes de fonte de classe elevada tais como leitores de CD.

Como parte do projeto sem comprometimento político, Yamaha criou um avançado chassi com rigidez forte. Rigidez do chassi é reforçada por um quadro de cruz em forma de H que aumenta a resistência mecânica, através da adopção de painéis laterais de alumínio que aumentam a rigidez da carcaça e por uma estrutura de três camadas: com tampa superior independente e painéis laterais. Qualquer vibração externa de rack ou de outras fontes é amortecida por isoladores pesados. A cunha A.R.T (tecnologia anti-ressonância) no centro da tampa inferior age como uma contramedida de vibração adicionais e apoia firmemente os circuitos internos e peças delicadas. Além disso, este modelo tem um chassi de duplo fundo e moldura rígida inferior mais aumentar a rigidez do chassi e reduzir a transmissão da vibração produzida pela fonte de alimentação grande e outros componentes internos.

CINEMA DSP HD3 literalmente, leva a experiência de som surround para novas alturas. Usando quatro motores de CINEMA DSP com processamento 3D avançado e quatro canais de presença em uma configuração de canal 11, dá o som uma maior dimensão vertical. Está envolvido por um som amplo, altos e densos que proporcionam som surround excitantemente e realista. Além disso, uma parte traseira Virtual Speaker presença foi adicionada ao habitual frente Virtual Speaker de presença, para que possa desfrutar de programas de CINEMA DSP HD3 usando um sistema de 9 canais (sem colunas traseiras presença) com quase o mesmo som sensacional como um sistema de 11 canais.

A ampla gama de programas de som surround, incluindo 10 destaque no receptor Z11 emblemática, seis escolhas de filme funcionalidades, incluindo o espetáculo para filmes com forte impacto visual e áudio, Sci-Fi para filmes SFX, aventura para realçar o som de filmes de ação e Drama. Sete programas de entretenimento coincidir com as características de áudio de fontes tais como desportos, vídeos de música, jogos de acção e jogos de RPG. Compatibilidade com o Dolby TrueHD e DTS-HD formatos de som significa que ouvir todo o potencial de cada fonte de filme e música.

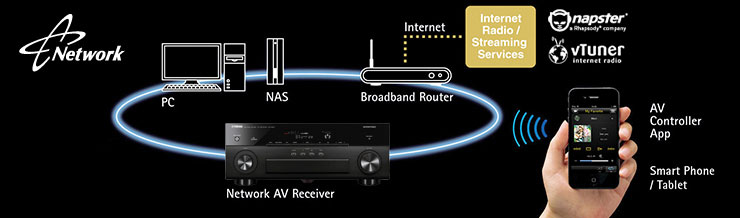

Este receptor AV fornece uma variedade de funções de rede que permitem que você aceder a mais fontes e também melhorar a gestão. Você pode ligar o receptor a um PC para desfrutar de rádio na Internet, o Napster ® e gerir o seu sistema através do controle de navegador da Web. O app controller de AV (do iTunes App Store ou Google play) permite controlar várias funções do seu iPod, iPhone, iPad ou Android phones / tablets.
* A disponibilidade do serviço de música varia por região.

Este receptor AV suporta AirPlay, o que significa que eles podem aceitar o iPod touch, iPhone ou iPad, bem como dos iTunes em Macs ou PCs de streaming de música sem fios. Isto torna mais fácil para desfrutar de música a partir de seu computador no seu sistema de home theater ou dispositivos móveis. Você pode usar e exibir metadados tais como título da canção, nome do artista, assim como o álbum arte através do receptor AV no ecrã.
* Alguns modelos não suportam a exposição de arte do álbum.

Este receptor AV permite que você use o app de Yamaha AV controller que está disponível para download na iTunes AppStore ou Google peça para controle de ligar / desligar e volume, selecione a entrada e modos DSP e operar outras funções de um iPhone ou dispositivos Android. Você também pode usar em até 23 línguas diferentes e personalizar a interface para esconder ícones não utilizados, renomeando funções. Uma versão do tablet também está disponível.

O app AV controller é extremamente útil para controlar várias funções em zonas de múltiplas instalações. Seleção de zona é facilmente feita escolhendo os ícones de zona, que podem ser alterados (quarto, cozinha, etc.). Você pode controlar o botão on/off, seleção de entrada e o nível de volume em cada zona e também renomear as zonas. O aplicativo também mostra quando o modo de festa está a ser usado e permite controle de volume da função festa.

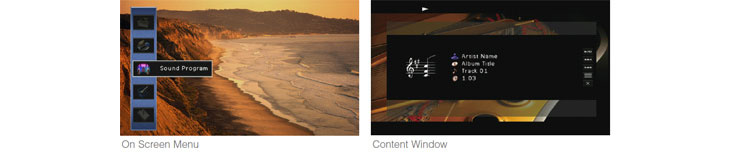

Últimas Graphical User Interface da Yamaha tem uma alta resolução e nitidez, com menus de fácil utilização e também inclui uma barra de Status selecionáveis que mostra a fonte de entrada, nível de volume, modo de DSP e formato de áudio. O GUI oferece uma escolha de sete idiomas: Inglês, francês, alemão, japonês, russo, espanhol, italiano e chinês e pode ser exibido com mais fotos normais e 3D.

A função SCENE PLUS simplifica a gestão, permitindo a ligação de "um toque - On" com a seleção da fonte desejada e os programas adequados de DSP. SCENE PLUS oferece uma escolha de 12 seleções de cena, quatro das quais podem ser atribuídas a uma segunda zona num sistema multi-zona. Além de cena podem ser selecionados a partir do painel frontal, controle remoto, GUI e mesmo a partir da AV Controller app.

Uma porta USB no painel frontal permite ligação conveniente de um iPod / iPhone / iPad, que também carrega quando ligado. Porque o sinal digital do iPod / iPhone / iPad é transmitido diretamente para o receptor AV, não há perda de sinal ou interferência, para que você possa desfrutar da melhor qualidade de som possível. Além disso, você pode usar a unidade de controle remoto do receptor para gerir o iPod / iPhone / iPad nas funções de reprodução de música.

O receptor AV HDMI de entrada / saída suporta A passagem de imagem de vídeo 4K. Também pode executar 4K upscaling para aumentar uma imagem de resolução mais baixa para super resolução de alta definição. Isso garante a compatibilidade com a mais recente super alta resolução de formatos de vídeo.

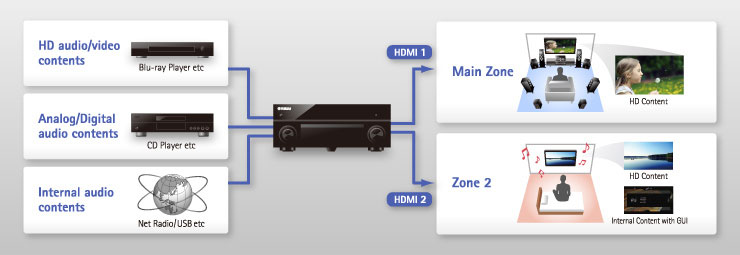

Enquanto padrão HDMI a zona de comutação só pode enviar programas de vídeo HD para a zona principal e zona secundária. A zona avançada HDMI da Yamaha adiciona a capacidade para escolher de todas as fontes de áudio e vídeo para reprodução em qualquer zona. Uma interface gráfica no ecrã do utilizador torna mais fácil para navegar e selecionar o conteúdo para desfrutar da zona secundária, não importando o que está a passar na zona principal.

O projector de vídeo high-end da Yamaha com experiência em engenharia produziu várias técnicas de processamento avançadas que são aplicadas a este receptor AV. Estes incluem borda adaptável de desentrelaçamento para alisar para fora o ruído jaggy, movimentos de desentrelaçamento adaptável para detectar movimento ou ainda imagens de precisão pixel por pixel no processamento e multi-cadência na detecção incluindo suspensão 3-2. Processamento adequado faz a visualização com apreciação completa e independentemente do conteúdo ou fonte de vídeo.

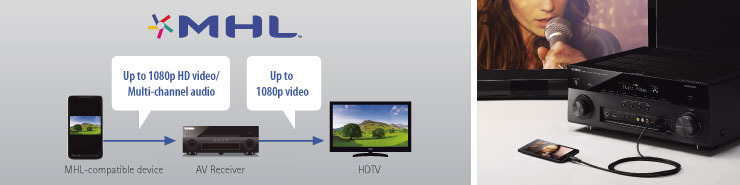

MHL fornece ligação fácil e directa de telemóveis compatíveis e este receptor AV. Há suporte para reprodução de até 1080 p vídeo e áudio multicanal dos telefones. O receptor também cobra o telefone ligado. Play, Stop e outras operações básicas podem ser controladas através do telecomando.

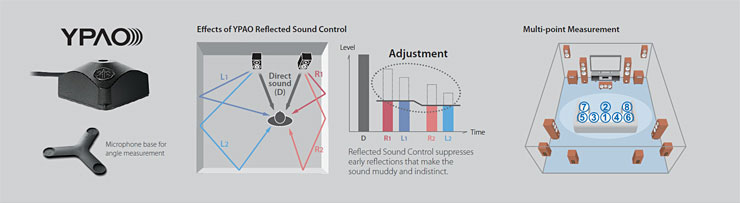

YPAO analisa a acústica da sala e a coluna executa medidas de ângulo e, em seguida, calibra parâmetros áudio para alcançar o som ideal em qualquer uma das várias posições de escuta. Também emprega controle de som refletido para corrigir reflexões iniciais para som de qualidade de estúdio. Também fornece DSP Effect Normalisation, que varia os parâmetros do CINEMA DSP de acordo com os sons refletidos.

A extensão Hi-bit DE alta-amostragem acima de 96 kHz / 24 bits pode ser aplicado para 44.1 lossless / 48kHz tal conteúdo a partir de um CD (2 canais PCM) ou um arquivo FLAC para aumentar ainda mais a musicalidade no conteúdo original.

Quando a música é codificada num formato compactado digitalmente como o MP3, a resposta de frequência é afectada. A Yamaha Compressed Music Enhancer emprega um processamento sofisticado de sinal digital, usando algoritmos exclusivos para restaurar o que foi perdido, assim que a música soa sempre do jeito que deveria.

Elevador de diálogo gera o som de diálogo a partir da coluna central para uma posição no centro do ecrã. O elevador de diálogo virtual recém-desenvolvido atinge uma função de diálogo elevado, mesmo sem a necessidade de colunas de presença. Ajuste de nível de diálogo permite que você controle o volume do som vocal, assim pode ouvir um diálogo de um filme e música vocal no nível ideal para ouvir de forma clara e confortável.

O CX-A5000 fornece dois Trigger Out jacks que permitem o controle das funções do componente ligado como botã o on/off e seleção de entrada. O MX-A5000 ou outro amplificador ou subwoofer com um gatilho em jack pode ser ligado para permitir o uso da função conveniente do gatilho.

Auto Power Standby permite-lhe poupar energia, selecionando para o desligar após 2, 4, 8 ou 12 horas.

A Yamaha faz os seus receptores eco-friendly, com um consumo de baixa energia em espera de 0.3 w no modo Standby IR (5.0W em modo Standby Through HDMI, 2,2 w no modo Standby rede).

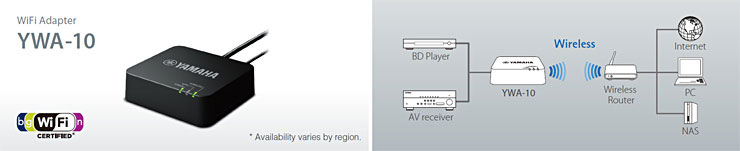

Este receptor AV fornece uma ligação de saída DC do adaptador de WiFi YWA-10 (acessório opcional). Isso permite-lhe transmitir música sem fios através de um roteador de componentes de rede como um PC ou NAS.

Este receptor AV fornece uma ligação de saída DC para o adaptador sem fios Bluetooth YBA 11 (acessório opcional). Você será capaz de transmitir música sem fios de um Bluetooth compatível com smartphone, tablet ou PC, sem um ambiente Wi-Fi.

• Formato audio HD de decodificação: Dolby TrueHD e DTS-HD Master Audio; Dolby Digital Plus e Áudio de alta resolução DTS-HD
FLAC ou WAV reprodução de áudio 192kHz/24 bits
• Circuito de ultra baixo Jitter PLL ajuda a optimizar o som imagem
•Entrada phono para reprodução de vinil

• HDMI: 8 entradas (1 na frente) e 2 saídas (podem ser atribuídas por zona) com 3D e canal de retorno de áudio
• Analógica para upconversion de vídeo analógico

• DLNA 1.5 certificada
• Entrada de painel frontal de HDMI para dispositivos tais como câmeras digitais e filmadoras
• HDMI CEC com controle versátil de controle remoto de receptor AV
• Capacidade de alterar a entrada durante o modo Standby através de HDMI
• Carregamento do iPod, iPhone e iPad via USB quando o receptor AV está desligado
• Atraso de áudio para ajustar Lip-Sync (0-500 ms)
• Macro, a aprendizagem e a unidade remota capaz predefinida
• Recurso de vídeo de fundo (para o sintonizador e Net)

• HD de decodificação de áudio com CINEMA DSP HD3 (33 DSP programas)
• Elevador de diálogo virtual mesmo sem o uso de colunas de presença
• Subwoofer Trim para a imagem latente de som melhorado
• Adaptável DRC (Dynamic Range Control)
• Nível de DSP adaptável

• Zona 2 / 3 / 4, liga / desliga e controle no painel frontal
• Zona de GUI (música / selecionar estação, exposição de arte de capa de álbum, controles de Tom de zona / zona equilíbrio,suma mensagem)
• Zona 2 / 3 vídeo atribuir (componente, S-Video, Composite)
• Backup de sistema / função de recuperação
• Mono de zona, volume de zona, controles de Tom e equilíbrio, etc.
• Modo de festa

Com a aplicação do Spotify no seu smartphone, você tem acesso imediato a milhões de músicas. E agora você pode transmitir essas canções para o seu sistema Yamaha usando Spotify connect. Apenas aperte o play para iniciar o streaming de música. Sobretudo quando tens ouvido imediatamente no teu smartphone a entrar e a sair, a canção transmitida para o teu AVR — como se fosse mágica, você gosta de música ininterrupta. Você também pode personalizar as listas de reprodução e receber chamadas enquanto ouve música.

*A conta premium e app de Spotify são necessários. Visite spotify.com para mais detalhes.
Tente o Spotify Premium gratuitamente no seu sistema de entretenimento Yamaha em casa por 30 dias.
http://spotify.com/yamaha
*A disponibilidade do serviço de spotify depende das regiões.

This model will support HDMI 2.0 connectivity*.
It will support 4K Ultra HD 50 Hz/60 Hz signal pass-through to output motion-smooth high definition videos.


*Firmware update will be available to support this feature.

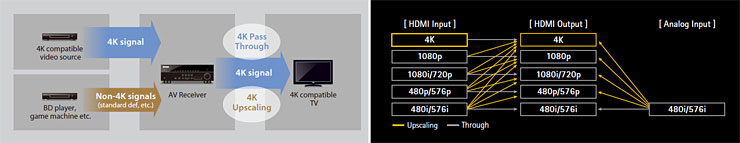

This AV receiver's HDMI input / output supports 4K video image pass-through. It also can perform 4K upscaling to boost a lower resolution image to super high-def resolution. This ensures compatibility with the latest super high resolution video formats.

The CX-A5000 utilises the most sophisticated engineering and technology, as well as traditional craftsmanship, for pure sound reproduction. Making full use of CINEMA DSP HD3, the pinnacle of 3-dimensional sound field reproduction, it realises detailed, accurate sound imaging. Combined with the MX-A5000 11.2-channel Power Amplifier, it achieves overwhelming silence and sound filled with dynamic feeling. It also offers advanced video processing technology, versatile network capability with a wide range of content access and app control, and flexible system configuration that benefits from advanced HDMI Zone switching.

The AVENTAGE line of high-performance AV receivers is based on the audio design concept of providing a massive, full-bodied sound for movie sound effects and the accurate reproduction of music sources. By expertly harmonising traditional and advanced technologies, every factor that affects sound quality, from materials and parts to construction, layout, vibration damping (unique foot) and “fine-tuning” the sound, is handled with no other thought than to achieve the best possible audio quality. As a result, every AVENTAGE model has the ability to reproduce the most subtle details of high-definition sound, so that listeners can enjoy a truly high-class sound studio experience at home.

In the CX-A5000, all channels use ultra high performance ESS ES9016 DACs, which provide 192kHz/32-bit compatible high SN ratio and dynamic range, ensuring that it can faithfully reproduce audio signals from Blu-ray and other players, and high quality signals from high resolution sound sources input through networks. Matched to the design of the DAC circuit, which achieves stable ground potential (DAC on Pure Ground), they ensure high precision D/A conversion. The OP amp is a high grade type adopted only by flagship models, for maximum signal purity. It realises even more detailed sound by adopting a three-layer circuit board design that completely separates the digital, analogue video and analogue audio circuit boards, which have different noise levels and frequency bands, and by a design that provides the shortest possible circuit route. Further, by separating the power supplies to the analogue circuit boards, it eliminates high frequency noise interference from the digital circuits. The shielded power supply restricts noise radiation and the large power transformer minimises vibration.

An ultra-high performance ESS Technology 192 kHz/32 bit ES9016 DAC produces an unsurpassed sound stage with up to 124 dB dynamic range, super low distortion and noise level. This top-end quality DACs are used even for front and rear presence speakers. This AV receiver’s sound reproduction is for the most discriminating of listeners.

Electrical noise may be generated due to connection with other AV components and even to the connection between the pre-amplifier and power amplifier, as well as from other sources of external noise. To ensure that the CX-A5000 and MX-A5000 are not affected by this distortion, they use balanced connections that are highly noise resistant—the same type generally used in pro audio equipment. Even the RCA unbalanced connection uses a ground sensing transmission method that achieves simple balanced transmission. And in cases such as that where each channel with the XLR is used selectively, the impact of noise flowing between the preamp and the chassis of the power amp is removed, minimising sound quality deterioration due to the connection. The CX-A5000 also allows balanced audio input connection to high grade source components such as CD players.

As part of the no-compromise design policy, Yamaha created an advanced chassis with strong rigidity. Chassis stiffness is enhanced by an H-shaped cross frame that boosts mechanical strength, by adopting aluminium side panels that increase the stiffness of the housing, and by a three-ply structure with independent top cover and side panels. Any external vibration from the rack or other sources is damped by heavy insulators. The A.R.T (Anti-Resonance Technology) Wedge in the centre of the bottom cover acts as an additional vibration countermeasure and firmly supports the internal circuits and delicate parts. In addition, this model has a double bottom chassis and rigid bottom frame to further enhance chassis rigidity and reduce the transmission of vibration produced by the large power supply and other internal components.

CINEMA DSP HD3 literally takes the surround sound experience to new heights. By using four CINEMA DSP engines with advanced 3D processing and four presence channels in an 11-channel configuration, it gives the sound an enhanced vertical dimension. You are enveloped in wide, high and dense sound fields that deliver excitingly realistic surround sound. In addition, a rear Virtual Presence Speaker has been added to the usual front Virtual Presence Speaker, so you can enjoy CINEMA DSP HD3 programmes using a 9-channel system (without rear presence speakers) with almost the same sensational sound as an 11-channel system.

The broad array of surround sound programmes, including 10 featured in the flagship Z11 receiver, features six Movie choices, including Spectacle for movies with strong visual and audio impact, Sci-Fi for SFX movies, Adventure to emphasise the sound of action movies, and Drama. Seven Entertainment programmes match the audio characteristics of sources such as sports, music videos, action games and roleplaying games. Compatibility with the Dolby TrueHD and DTS-HD sound formats means you hear the full potential of every movie and music source.

This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet Radio, Napster®*, and operate your system via Web Browser Control. The AV Controller app (from iTunes App Store or Google play) lets you control various functions from your iPod, iPhone, iPad or Android phones / tablets.
*Music service availability varies by region.

This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod touch, iPhone or iPad, as well as from iTunes on Macs or PCs. This makes it easy to enjoy music from your mobile devices or computer on your home theatre system. You can use view metadata such as song title, artist name as well as album art* via AV receiver's on-screen display.
*Some models don't support album art display.

With the Spotify app on your smartphone, you've got instant access to millions of songs. And now you can stream those songs to your Yamaha system by using Spotify Connect. Just hit play to start streaming music. What's more, when you've been listening on your smartphone outside and come inside, the song immediately streams to your AVR—like magic, you enjoy uninterrupted music. You can also personalise playlists and receive phone calls while listening to music.

*The Spotify app and premium account are required. Visit spotify.com for more details.
Try Spotify Premium for free on your Yamaha Home Entertainment System for 30 days.
http://spotify.com/yamaha
*Spotify service availability depends on regions.

This AV receiver lets you use the Yamaha AV Controller app that is downloadable from the iTunes App Store or Google Play to control power on / off and volume, select input and DSP modes and operate other functions from an iPhone or Android devices. You can also use in as many as 23* different languages and customise the interface by hiding unused icons and renaming functions. A tablet version is also available.
*As of spring 2013

The AV Controller app is extremely useful for controlling various functions in multi-zone installations. Zone selection is easily done by choosing zone icons, which can be changed (bedroom, kitchen, etc.). You can control power on/off, input selection and the volume level in each zone, and also rename the zones. The app also shows when the Party mode is being used, and allows volume control of the Party function.

Yamaha’s latest Graphical User Interface has a high resolution display with clear, easy-to-use menus and also includes a selectable Status Bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of seven languages: English, French, German, Japanese, Russian, Spanish, Italian and Chinese, and can be displayed over both normal and 3D pictures.

The SCENE PLUS function simplifies operation by providing one touch power-on along with selection of the desired source and the appropriate DSP programmes. SCENE PLUS offers a choice of 12 SCENE selections, four of which can be assigned to the second zone in a multi-zone system. SCENE PLUS can be selected from the front panel, remote control, GUI and even from the AV Controller app.

A USB port on the front panel allows convenient connection of an iPod / iPhone / iPad, which also charges when connected. Because the digital signal from the iPod / iPhone / iPad is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver’s remote control unit to operate the iPod / iPhone / iPad music playback functions.

While standard HDMI zone switching can only send HD video programmes to the main and second zones, Yamaha’s Advanced HDMI Zone Switching adds the capability to choose from all audio and video sources for playback in either zone. An on-screen graphical user interface makes it easy to browse and select content to enjoy from the second zone no matter what is being played in the main zone.

Yamaha’s high-end video projector engineering expertise has produced various advanced processing techniques that are applied to this AV receiver. These include edge adaptive deinterlacing to smooth out jaggy noise, motion adaptive deinterlacing to detect moving or still images for precise pixel-by-pixel processing and multi-cadence detection including 3-2 pull-down. Proper processing makes viewing enjoyment complete no matter what video source or content.

MHL provides easy, direct connection of compatible mobile phones and this AV receiver. Playback of up to 1080p video and multi-channel audio from the phones is supported. The receiver also charges the connected phone. Play, Stop and other basic operations can be controlled from the remote control.

YPAO analyses room acoustics and performs speaker angle measurements, then calibrates audio parameters to achieve optimum sound at any of several listening positions. It employs Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalisation, which varies the CINEMA DSP parameters according to the reflected sounds.

Hi-bit high-sampling extension up to 96 kHz / 24-bit can be applied to lossless 44.1 / 48 kHz content such as from a CD (2-channel PCM) or a FLAC file for further heightening of the musicality in the original content.

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

Dialogue Lift raises the sound of dialogue from the centre speaker to a position in the centre of the screen. Newly developed virtual dialogue lift achieves dialogue lift function even without the need for presence speakers. Dialogue Level Adjustment lets you control the volume of the vocal sound, so you hear movie dialogue and music vocals at the ideal level for clear, comfortable listening.

The CX-A5000 provides two Trigger Out jacks that enable control of connected component functions such as power on/off and input selection. The MX-A5000 or another amplifier or subwoofer with a Trigger In jack can be connected to allow use of the convenient Trigger function.

Auto Power Standby lets you save energy by selecting to turn off the power after 2, 4, 8 or 12 hours.

Yamaha makes its receivers eco-friendly with a low standby power consumption of 0.3W in IR Standby mode (5.0W in HDMI Standby Through mode, 2.2W in Network Standby mode).

This AV receiver provide a DC-out connection for the YWA-10 WiFi Adapter (optional accessory). This lets you stream music wirelessly via a router from network components such as a PC or NAS.

This AV receiver provide a DC-out connection for the YBA-11 Bluetooth Wireless Adapter (optional accessory). You'll be able to stream music wirelessly from a Bluetooth-capable smartphone, tablet or PC, without a WiFi environment.

• HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and
DTS-HD High Resolution Audio
• FLAC or WAV 192kHz/24-bit audio playback
• Ultra Low Jitter PLL circuitry helps optimise sound imaging
• Phono input for vinyl playback

• HDMI: 8 inputs (1 on front) and 2 outputs (assignable for zone) with 3D and Audio Return Channel
• Analogue to analogue video upconversion

• DLNA 1.5 certified
• HDMI front panel input for devices such as camcorders and digital cameras
• HDMI CEC with versatile control from AV Receiver remote control
• Ability to change HDMI input while in Standby Through mode
• Charging of iPod, iPhone and iPad via USB when AV Receiver is off
• Audio Delay for adjusting Lip-Sync (0-500 ms)
• Macro, Learning and preset capable remote unit
• Background Video feature (for tuner and Net)

• HD Audio decoding with CINEMA DSP HD3 (33 DSP programmes)
• Virtual dialogue lift even without use of presence speakers
• Subwoofer Trim for improved sound imaging
• Adaptive DRC (Dynamic Range Control)
• Adaptive DSP Level

• Zone 2 / 3 / 4 on / off and control on front panel
• Zone GUI (song / station select, album cover art display, Zone tone controls / Zone balance, short message)
• Zone 2 / 3 video assign (Component, S-Video, Composite)
• System Backup / Recovery function
• Zone mono, Zone volume, tone controls and balance, etc.
• Party mode

This model will support HDMI 2.0 connectivity*.
It will support 4K Ultra HD 50 Hz/60 Hz signal pass-through to output motion-smooth high definition videos.


*Firmware update will be available to support this feature.

This AV receiver's HDMI input / output supports 4K video image pass-through. It also can perform 4K upscaling to boost a lower resolution image to super high-def resolution. This ensures compatibility with the latest super high resolution video formats.

The CX-A5000 utilises the most sophisticated engineering and technology, as well as traditional craftsmanship, for pure sound reproduction. Making full use of CINEMA DSP HD3, the pinnacle of 3-dimensional sound field reproduction, it realises detailed, accurate sound imaging. Combined with the MX-A5000 11.2-channel Power Amplifier, it achieves overwhelming silence and sound filled with dynamic feeling. It also offers advanced video processing technology, versatile network capability with a wide range of content access and app control, and flexible system configuration that benefits from advanced HDMI Zone switching.

The AVENTAGE line of high-performance AV receivers is based on the audio design concept of providing a massive, full-bodied sound for movie sound effects and the accurate reproduction of music sources. By expertly harmonising traditional and advanced technologies, every factor that affects sound quality, from materials and parts to construction, layout, vibration damping (unique foot) and “fine-tuning” the sound, is handled with no other thought than to achieve the best possible audio quality. As a result, every AVENTAGE model has the ability to reproduce the most subtle details of high-definition sound, so that listeners can enjoy a truly high-class sound studio experience at home.

In the CX-A5000, all channels use ultra high performance ESS ES9016 DACs, which provide 192kHz/32-bit compatible high SN ratio and dynamic range, ensuring that it can faithfully reproduce audio signals from Blu-ray and other players, and high quality signals from high resolution sound sources input through networks. Matched to the design of the DAC circuit, which achieves stable ground potential (DAC on Pure Ground), they ensure high precision D/A conversion. The OP amp is a high grade type adopted only by flagship models, for maximum signal purity. It realises even more detailed sound by adopting a three-layer circuit board design that completely separates the digital, analogue video and analogue audio circuit boards, which have different noise levels and frequency bands, and by a design that provides the shortest possible circuit route. Further, by separating the power supplies to the analogue circuit boards, it eliminates high frequency noise interference from the digital circuits. The shielded power supply restricts noise radiation and the large power transformer minimises vibration.

An ultra-high performance ESS Technology 192 kHz/32 bit ES9016 DAC produces an unsurpassed sound stage with up to 124 dB dynamic range, super low distortion and noise level. This top-end quality DACs are used even for front and rear presence speakers. This AV receiver’s sound reproduction is for the most discriminating of listeners.

Electrical noise may be generated due to connection with other AV components and even to the connection between the pre-amplifier and power amplifier, as well as from other sources of external noise. To ensure that the CX-A5000 and MX-A5000 are not affected by this distortion, they use balanced connections that are highly noise resistant—the same type generally used in pro audio equipment. Even the RCA unbalanced connection uses a ground sensing transmission method that achieves simple balanced transmission. And in cases such as that where each channel with the XLR is used selectively, the impact of noise flowing between the preamp and the chassis of the power amp is removed, minimising sound quality deterioration due to the connection. The CX-A5000 also allows balanced audio input connection to high grade source components such as CD players.

As part of the no-compromise design policy, Yamaha created an advanced chassis with strong rigidity. Chassis stiffness is enhanced by an H-shaped cross frame that boosts mechanical strength, by adopting aluminium side panels that increase the stiffness of the housing, and by a three-ply structure with independent top cover and side panels. Any external vibration from the rack or other sources is damped by heavy insulators. The A.R.T (Anti-Resonance Technology) Wedge in the centre of the bottom cover acts as an additional vibration countermeasure and firmly supports the internal circuits and delicate parts. In addition, this model has a double bottom chassis and rigid bottom frame to further enhance chassis rigidity and reduce the transmission of vibration produced by the large power supply and other internal components.

CINEMA DSP HD3 literally takes the surround sound experience to new heights. By using four CINEMA DSP engines with advanced 3D processing and four presence channels in an 11-channel configuration, it gives the sound an enhanced vertical dimension. You are enveloped in wide, high and dense sound fields that deliver excitingly realistic surround sound. In addition, a rear Virtual Presence Speaker has been added to the usual front Virtual Presence Speaker, so you can enjoy CINEMA DSP HD3 programmes using a 9-channel system (without rear presence speakers) with almost the same sensational sound as an 11-channel system.

The broad array of surround sound programmes, including 10 featured in the flagship Z11 receiver, features six Movie choices, including Spectacle for movies with strong visual and audio impact, Sci-Fi for SFX movies, Adventure to emphasise the sound of action movies, and Drama. Seven Entertainment programmes match the audio characteristics of sources such as sports, music videos, action games and roleplaying games. Compatibility with the Dolby TrueHD and DTS-HD sound formats means you hear the full potential of every movie and music source.

This AV receiver provides a variety of network functions that enable you to access more sources and also enhance operation. You can connect the receiver to a PC to enjoy Internet Radio, Napster®*, and operate your system via Web Browser Control. The AV Controller app (from iTunes App Store or Google play) lets you control various functions from your iPod, iPhone, iPad or Android phones / tablets.
*Music service availability varies by region.

This AV receiver supports AirPlay, which means they can accept wireless music streaming from iPod touch, iPhone or iPad, as well as from iTunes on Macs or PCs. This makes it easy to enjoy music from your mobile devices or computer on your home theatre system. You can use view metadata such as song title, artist name as well as album art* via AV receiver's on-screen display.
*Some models don't support album art display.

With the Spotify app on your smartphone, you've got instant access to millions of songs. And now you can stream those songs to your Yamaha system by using Spotify Connect. Just hit play to start streaming music. What's more, when you've been listening on your smartphone outside and come inside, the song immediately streams to your AVR—like magic, you enjoy uninterrupted music. You can also personalise playlists and receive phone calls while listening to music.

*The Spotify app and premium account are required. Visit spotify.com for more details.
Try Spotify Premium for free on your Yamaha Home Entertainment System for 30 days.
http://spotify.com/yamaha
*Spotify service availability depends on regions.

This AV receiver lets you use the Yamaha AV Controller app that is downloadable from the iTunes App Store or Google Play to control power on / off and volume, select input and DSP modes and operate other functions from an iPhone or Android devices. You can also use in as many as 23* different languages and customise the interface by hiding unused icons and renaming functions. A tablet version is also available.
*As of spring 2013

The AV Controller app is extremely useful for controlling various functions in multi-zone installations. Zone selection is easily done by choosing zone icons, which can be changed (bedroom, kitchen, etc.). You can control power on/off, input selection and the volume level in each zone, and also rename the zones. The app also shows when the Party mode is being used, and allows volume control of the Party function.

Yamaha’s latest Graphical User Interface has a high resolution display with clear, easy-to-use menus and also includes a selectable Status Bar that shows input source, volume level, DSP mode and audio format. The GUI provides a choice of seven languages: English, French, German, Japanese, Russian, Spanish, Italian and Chinese, and can be displayed over both normal and 3D pictures.

The SCENE PLUS function simplifies operation by providing one touch power-on along with selection of the desired source and the appropriate DSP programmes. SCENE PLUS offers a choice of 12 SCENE selections, four of which can be assigned to the second zone in a multi-zone system. SCENE PLUS can be selected from the front panel, remote control, GUI and even from the AV Controller app.

A USB port on the front panel allows convenient connection of an iPod / iPhone / iPad, which also charges when connected. Because the digital signal from the iPod / iPhone / iPad is transmitted directly to the AV receiver, there is no signal loss or interference, so you enjoy the best possible sound quality. In addition, you can use the receiver’s remote control unit to operate the iPod / iPhone / iPad music playback functions.

While standard HDMI zone switching can only send HD video programmes to the main and second zones, Yamaha’s Advanced HDMI Zone Switching adds the capability to choose from all audio and video sources for playback in either zone. An on-screen graphical user interface makes it easy to browse and select content to enjoy from the second zone no matter what is being played in the main zone.

Yamaha’s high-end video projector engineering expertise has produced various advanced processing techniques that are applied to this AV receiver. These include edge adaptive deinterlacing to smooth out jaggy noise, motion adaptive deinterlacing to detect moving or still images for precise pixel-by-pixel processing and multi-cadence detection including 3-2 pull-down. Proper processing makes viewing enjoyment complete no matter what video source or content.

MHL provides easy, direct connection of compatible mobile phones and this AV receiver. Playback of up to 1080p video and multi-channel audio from the phones is supported. The receiver also charges the connected phone. Play, Stop and other basic operations can be controlled from the remote control.

YPAO analyses room acoustics and performs speaker angle measurements, then calibrates audio parameters to achieve optimum sound at any of several listening positions. It employs Reflected Sound Control to correct early reflections for studio-quality sound. It also provides DSP Effect Normalisation, which varies the CINEMA DSP parameters according to the reflected sounds.

Hi-bit high-sampling extension up to 96 kHz / 24-bit can be applied to lossless 44.1 / 48 kHz content such as from a CD (2-channel PCM) or a FLAC file for further heightening of the musicality in the original content.

When music is encoded into a digitally compressed format like MP3, the frequency response suffers. Yamaha’s Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

Dialogue Lift raises the sound of dialogue from the centre speaker to a position in the centre of the screen. Newly developed virtual dialogue lift achieves dialogue lift function even without the need for presence speakers. Dialogue Level Adjustment lets you control the volume of the vocal sound, so you hear movie dialogue and music vocals at the ideal level for clear, comfortable listening.

The CX-A5000 provides two Trigger Out jacks that enable control of connected component functions such as power on/off and input selection. The MX-A5000 or another amplifier or subwoofer with a Trigger In jack can be connected to allow use of the convenient Trigger function.

Auto Power Standby lets you save energy by selecting to turn off the power after 2, 4, 8 or 12 hours.

Yamaha makes its receivers eco-friendly with a low standby power consumption of 0.3W in IR Standby mode (5.0W in HDMI Standby Through mode, 2.2W in Network Standby mode).

This AV receiver provide a DC-out connection for the YWA-10 WiFi Adapter (optional accessory). This lets you stream music wirelessly via a router from network components such as a PC or NAS.

This AV receiver provide a DC-out connection for the YBA-11 Bluetooth Wireless Adapter (optional accessory). You'll be able to stream music wirelessly from a Bluetooth-capable smartphone, tablet or PC, without a WiFi environment.

• HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio; Dolby Digital Plus and
DTS-HD High Resolution Audio
• FLAC or WAV 192kHz/24-bit audio playback
• Ultra Low Jitter PLL circuitry helps optimise sound imaging
• Phono input for vinyl playback

• HDMI: 8 inputs (1 on front) and 2 outputs (assignable for zone) with 3D and Audio Return Channel
• Analogue to analogue video upconversion

• DLNA 1.5 certified
• HDMI front panel input for devices such as camcorders and digital cameras
• HDMI CEC with versatile control from AV Receiver remote control
• Ability to change HDMI input while in Standby Through mode
• Charging of iPod, iPhone and iPad via USB when AV Receiver is off
• Audio Delay for adjusting Lip-Sync (0-500 ms)
• Macro, Learning and preset capable remote unit
• Background Video feature (for tuner and Net)

• HD Audio decoding with CINEMA DSP HD3 (33 DSP programmes)
• Virtual dialogue lift even without use of presence speakers
• Subwoofer Trim for improved sound imaging
• Adaptive DRC (Dynamic Range Control)
• Adaptive DSP Level

• Zone 2 / 3 / 4 on / off and control on front panel
• Zone GUI (song / station select, album cover art display, Zone tone controls / Zone balance, short message)
• Zone 2 / 3 video assign (Component, S-Video, Composite)
• System Backup / Recovery function
• Zone mono, Zone volume, tone controls and balance, etc.
• Party mode
